Casting Parts

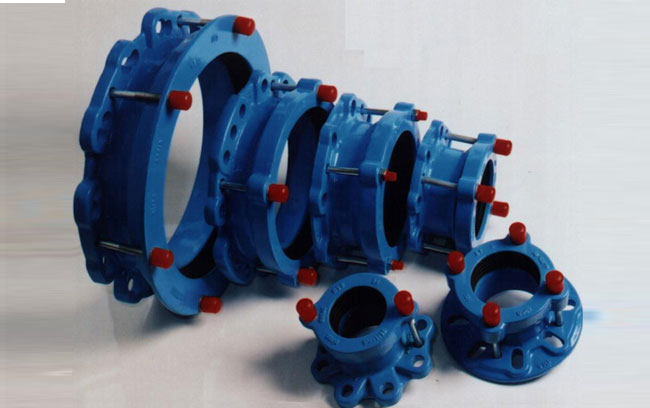

Universal Flange Adaptor

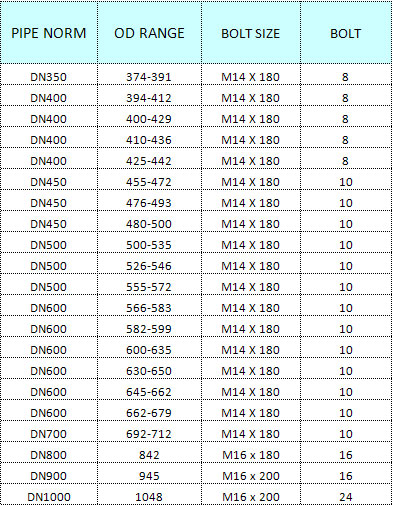

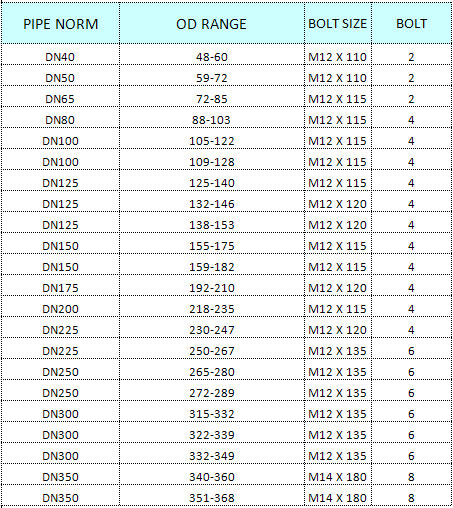

Dimension: DN40 (48-60) -DN1000 (1048) Special size can be made according to customer's requirement;

Body Material: DN40 (48-60) -DN700 (712-738) DI ASTM A536 65-45-12/GGG40

Endring: DI till DN300 and bigger size rolling steel

Gasket: EPDM with WRAS certificate, NBR and SBR available upon request;

Fasteners: T bolt to EN20898-1 Grade 8.8 with dachromate coating with thread protect cap.  Stainless steel                      fastener can be supplied upon roquest.

Coating: Rilsan Nylon 11 or FBE coating with 250 micrometers up
